Fast, Economical Straight-Line Cutting
ZWCNC Hydraulic CNC Swing Beam Shear is designed for workshops that need efficient straight-line cutting without the complexity of adjustable shear angle mechanisms. The pivoting upper beam design enables faster cutting cycles, making it well-suited for high-volume thin sheet work in general fabrication.
The fixed shear angle simplifies operation and reduces setup time, while the proven hydraulic system ensures reliable day-to-day performance. This combination makes swing beam shears a practical choice for cost-conscious buyers entering CNC shearing.
Request a Quote
See Swing Beam Shear in Action
Watch how the fast cycling and simple operation support efficient sheet metal cutting.
A Practical Swing Beam Shearing Machine for Efficient Sheet Cutting
ZWCNC Swing Beam Shear is built for workshops that need efficient straight-line cutting without the complexity of adjustable shear angle mechanisms. The pivoting upper beam design enables faster cutting cycles, making it well-suited for high-volume thin sheet work.
The fixed shear angle simplifies operation and reduces setup time, which is valuable in environments where operators handle varied parts and quick changeovers are important.
For buyers focused on cost-effective thin sheet cutting in general fabrication, the swing beam design provides a practical balance of speed, simplicity and investment level.
Why Choose ZWCNC Swing Beam Shear
For workshops focused on fast, economical cutting of thin-to-medium sheet.
Fast Cutting Cycles for Higher Productivity
The pivoting upper beam design allows quicker cutting cycles compared with guillotine shears. This speed advantage is particularly valuable for high-volume thin sheet cutting where cycle time directly affects throughput.
Economical Investment for General Fabrication
The simpler mechanical structure of swing beam shears typically results in a lower purchase price than guillotine machines. This makes it an attractive option for budget-conscious buyers or workshops entering CNC shearing.
Easy Operation with Fixed Shear Angle
With a fixed shear angle, operators do not need to adjust cutting parameters for different thicknesses. This simplicity reduces operator training time and minimizes setup errors in mixed-production environments.
Robust Structure for Reliable Daily Use
Despite its simpler design, the ZWCNC swing beam shear uses proven hydraulic components and a sturdy frame to ensure reliable day-to-day performance in demanding workshop conditions.
Choose Swing Beam Shear If
- Best for thin to medium sheet cutting — If your main cutting work involves thinner plates within the swing beam capacity range, this machine offers the speed and economy you need without over-specifying for thicker plate requirements.
- Recommended for high-volume production — When you run high volumes of straight cuts on thin sheets, the faster cutting cycles of swing beam shears can significantly improve daily throughput compared with slower guillotine designs.
- Ideal for cost-sensitive buyers — For workshops that need reliable straight-line cutting at a competitive price point, the swing beam shear provides a practical entry into CNC shearing without paying for heavy plate capability you may not need.
Shearing Machine Series Comparison
Compare features, capacity and investment to find the right shearing machine for your workshop.
Swing Beam Shear
For fast, economical cutting of thin-to-medium sheet.
- Fixed shear angle
- Faster cutting cycles
- More economical investment
- For thin sheet and general fabrication
Guillotine Shear
For medium to thick plate cutting with adjustable shear angle.
- Adjustable shear angle
- Higher cutting capacity
- CNC backgauge control
- For thick plate and demanding work
Control System
Choose from a range of NC and CNC controllers to match your operation requirements and budget.

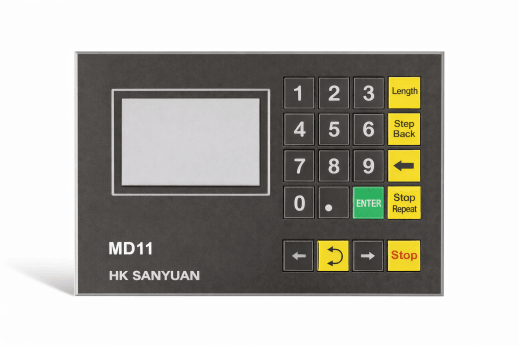

Sanyuan MD11
Economical NCLCD interactive interface with straightforward operation. Variable-frequency positioning with PID for precise one-step positioning; programmable for multiple products and steps; practical for workshops that want reliable NC backgauge control without complex CNC overhead.

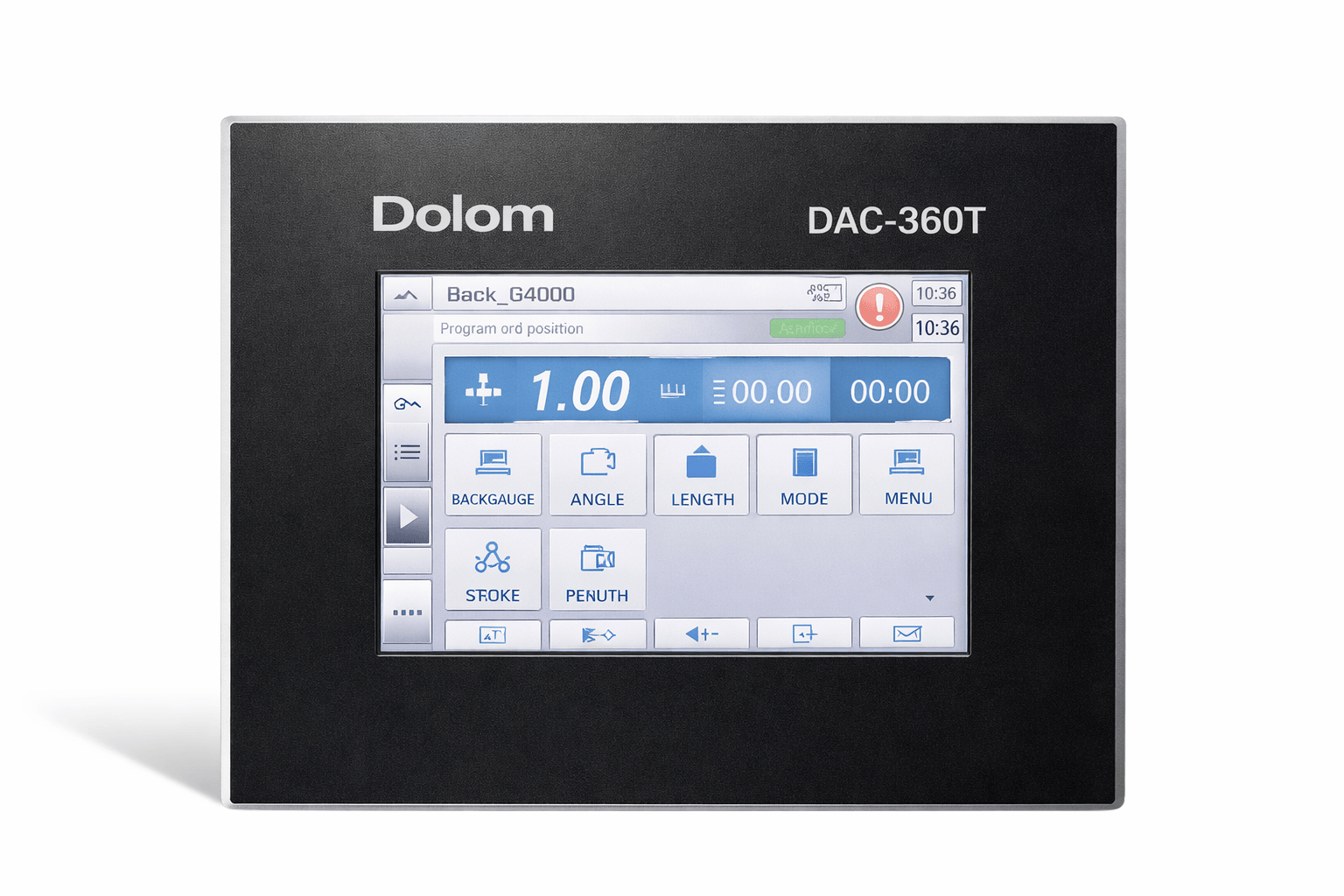

DELEM DAC-360T
Panel-mount CNCBright colour touchscreen with full shearing control: backgauge with retract, shear angle and blade gap, stroke limitation, manual axis movement, pressure control and sheet thickness detection — suited to programmed batch shearing and repeatable quality.

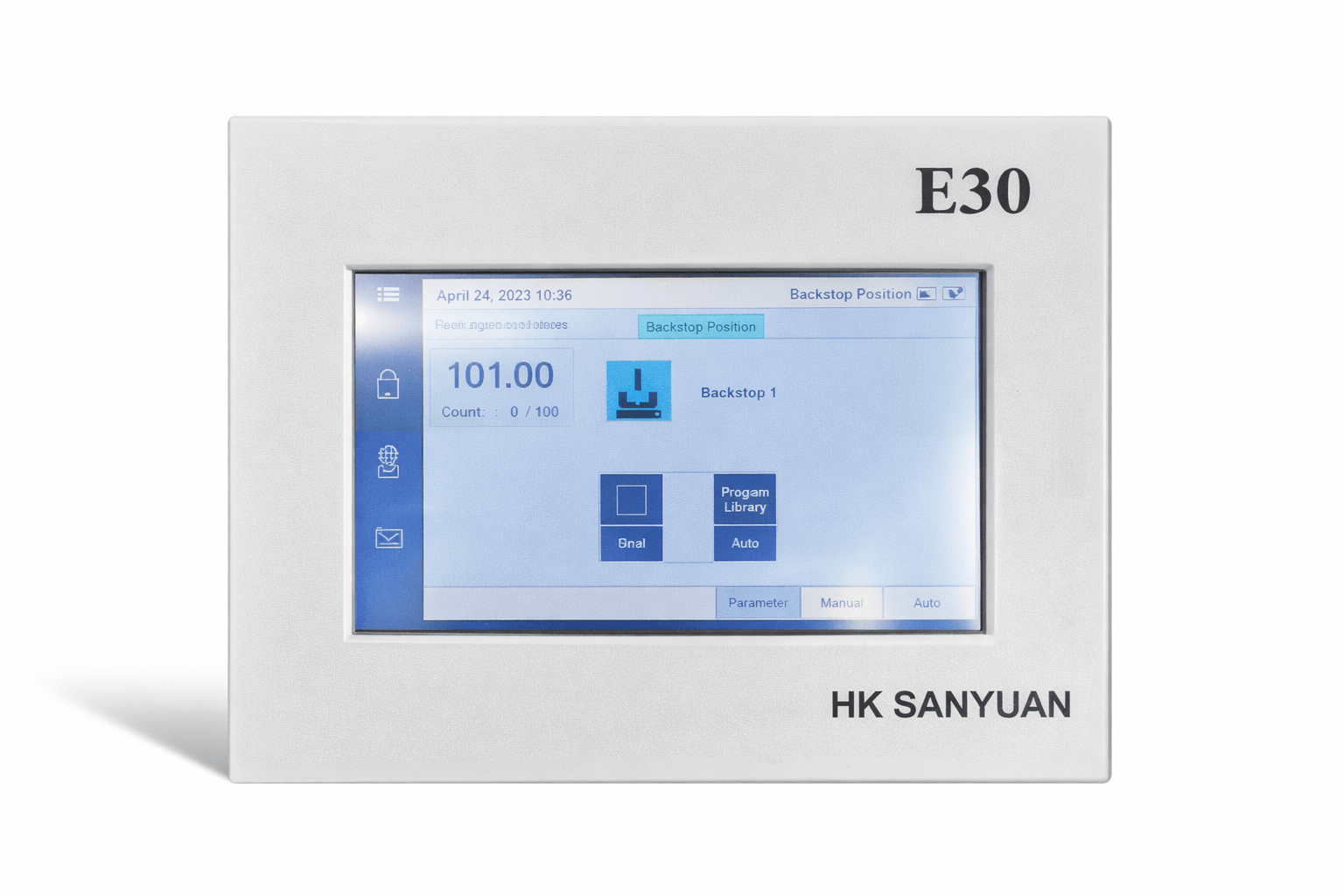

Sanyuan E30
7" touchscreen7-inch colour touchscreen with menu-style programming, frequency converter and CANopen bus for stable positioning. Supports angle programming, backgauge and stroke control, multi-program memory and power-off retention — a strong mid-tier CNC option.

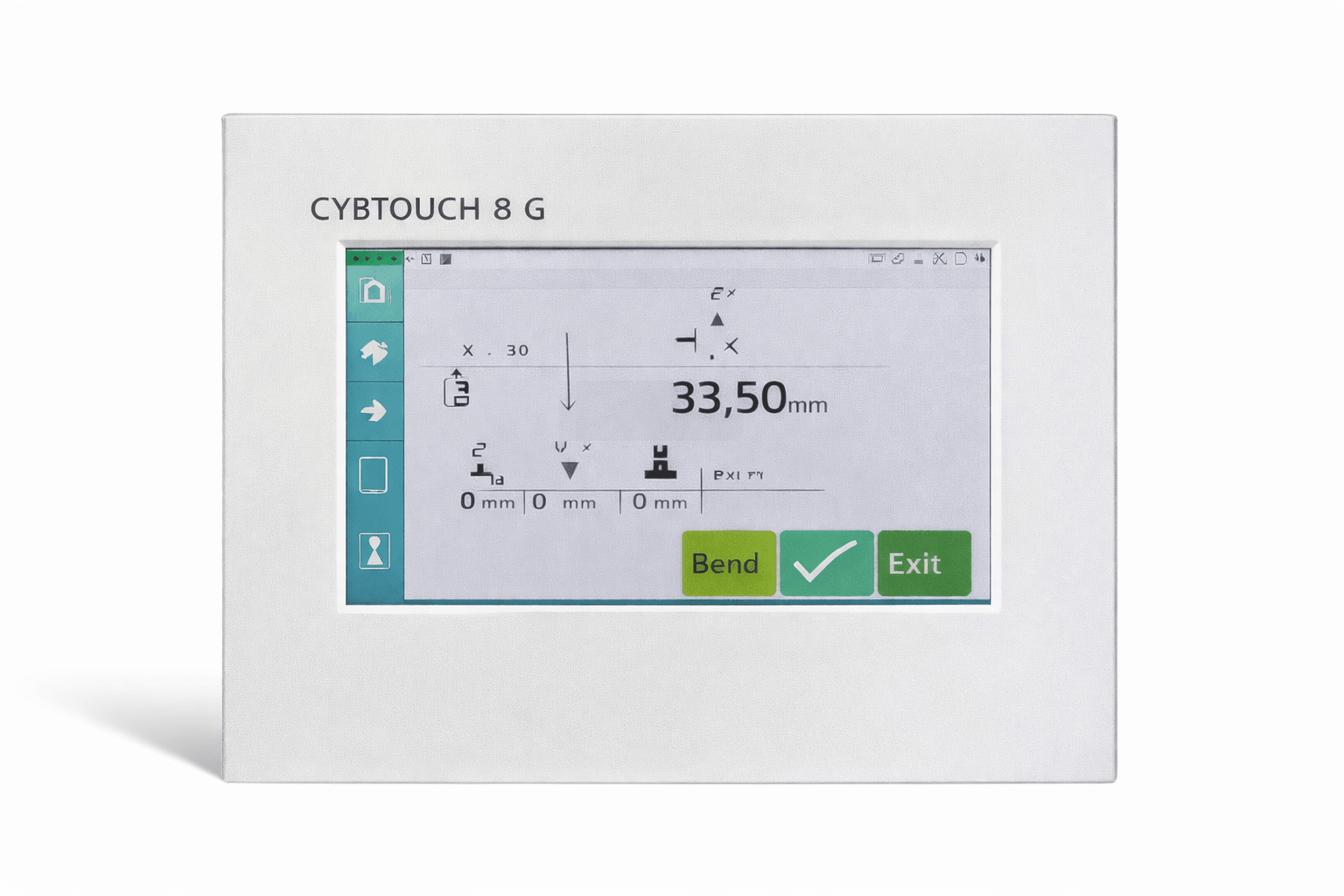

CYBTOUCH 8G
EasyCut & batchLarge high-contrast display with intuitive layout and EasyCut for quick single cuts, plus programming for complex batch work. Online help, multi-language support and PC-based data transfer for efficient workshop workflows.
All controllers support multi-language operation. Contact us for controller recommendations based on your production needs.
Standard Configuration
Standard configurations include essential features for reliable daily operation. Optional upgrades available for enhanced performance.
Cutting System
- High-quality shear blades
- Fixed shear angle design
- Hydraulic hold-down clamp
- Front support table
Backgauge & Control
- NC backgauge control (standard)
- CNC backgauge control (optional)
- Backgauge travel: model dependent
- Position repeatability: ±0.02 mm
Hydraulic System
- Proven hydraulic valve brand
- Reliable hydraulic cylinder
- Hydraulic power unit
- Oil tank with filtration
Frame & Structure
- Welded frame structure
- Precision-machined guiding surfaces
- Worktable with ball transfer
- Stable base design
Core Specifications at a Glance
Technical Specifications
Swing Beam Shear Series - Main Models
| Model | Max Cutting Thicknessmm | Cutting Lengthmm | Strokes per Minute/min | Main Motor PowerkW | Weightkg |
|---|---|---|---|---|---|
| QC12K-4×2500 | 4 | 2500 | 22 | 5.5 | 4500 |
| QC12K-4×3200 | 4 | 3200 | 20 | 5.5 | 5500 |
| QC12K-6×2500 | 6 | 2500 | 18 | 7.5 | 5200 |
| QC12K-6×3200 | 6 | 3200 | 16 | 7.5 | 6200 |
| QC12K-8×2500 | 8 | 2500 | 14 | 11 | 6800 |
| QC12K-8×3200 | 8 | 3200 | 12 | 11 | 7800 |
| QC12K-10×3200 | 10 | 3200 | 10 | 15 | 9200 |
| QC12K-10×4000 | 10 | 4000 | 8 | 15 | 10800 |
Specifications are model dependent. Contact us for detailed specifications of specific models.
Trusted Worldwide
ZWCNC
Why Buyers Choose ZWCNC Swing Beam Shear
ZWCNC has been manufacturing shearing machines for over 48 years, with 800+ units produced annually and exported to more than 80 countries worldwide.
shearingMachineChild.factoryTrust.provenManufacturing
shearingMachineChild.factoryTrust.provenManufacturingDesc
shearingMachineChild.factoryTrust.globalService
shearingMachineChild.factoryTrust.globalServiceDesc
shearingMachineChild.factoryTrust.longTermValue
shearingMachineChild.factoryTrust.longTermValueDesc
Swing Beam Shear FAQ
- A swing beam shearing machine is used for fast straight-line cutting of sheet metal into blanks and smaller pieces. The upper beam pivots during cutting, which allows quick cycles with a simple structure. It is commonly used in sheet metal workshops for general straight cutting tasks on thinner plates.
- Swing beam shearing machines use a pivoting upper beam with a fixed shear angle and are usually faster and more economical, especially for thin-to-medium sheet cutting. Guillotine shearing machines move the upper beam vertically and allow shear angle adjustment, making them more suitable for thicker plates and more demanding cutting requirements.
- Swing beam shearing machines are typically selected for thinner plates and moderate thickness ranges. For very thick plates or when you frequently cut near the upper capacity limit, a guillotine shearing machine is generally recommended. Always check the rated thickness and material specifications before choosing a model.
- Swing beam shears have a simpler mechanical structure and fixed shear angle, which reduces manufacturing cost and simplifies setup. For buyers focused on efficient straight-line cutting in general fabrication work, this provides a cost-effective balance of performance and investment compared with more complex guillotine systems.
- To choose a size, define your material type, typical and maximum thickness, the maximum cutting length needed and estimated production volume. Model designations such as 4×2500 or 6×3200 indicate thickness × cutting length. Select a model that comfortably covers your maximum thickness and sheet length with some safety margin.
What is a swing beam shearing machine used for?
What is the difference between a swing beam and a guillotine shearing machine?
Is a swing beam shearing machine suitable for thick plate cutting?
Why is a swing beam shear usually more economical?
How do I choose the right swing beam shearing machine size?
Get a Swing Beam Shear Recommendation
Share your material type, thickness range, working length, production volume and budget preference. We can help you confirm whether a swing beam shearing machine is suitable and recommend specific models for your sheet metal fabrication line.
