Powerful Plate Cutting with Adjustable Shear Angle
ZWCNC Hydraulic CNC Guillotine Shear is built for workshops that need to cut medium to thick plates with consistent quality and flexibility. The adjustable shear angle is a key advantage over swing beam designs, allowing operators to optimize cutting conditions for different materials and thicknesses.
The robust hydraulic system and rigid frame structure ensure stable performance over time, making this machine a reliable choice for demanding production environments where cutting quality and machine uptime are both important.
Request a Quote
See Guillotine Shear in Action
Watch how the adjustable shear angle and robust hydraulic system work together for reliable plate cutting.
A Powerful Guillotine Shearing Machine for Demanding Plate Work
ZWCNC Guillotine Shear is designed for workshops that regularly cut medium to thick plates and need a machine that can handle higher cutting forces with consistent quality. The adjustable shear angle allows operators to optimise cutting conditions for different material types and thicknesses.
The rigid frame structure and well-proven hydraulic system support stable long-term performance, making this machine a reliable choice for OEM production lines, job shops and heavy fabrication environments.
Unlike swing beam shears with fixed angles, the guillotine design gives operators more flexibility to balance cutting force, edge quality and plate deformation based on the specific job at hand.
Why Choose ZWCNC Guillotine Shear
For workshops cutting medium to thick plate with adjustable shear angle.
Adjustable Shear Angle for Optimal Cutting
The shear angle can be adjusted to match different material types and thicknesses. This flexibility helps reduce cutting force, minimize plate deformation and maintain better edge quality across a wider range of applications.
Strong Hydraulic System for Heavy-Duty Cutting
A robust hydraulic system delivers the cutting force needed for medium to thick plate work. The well-proven hydraulic components support reliable daily operation in demanding production environments.
CNC Backgauge for Precise Repeat Cuts
CNC-controlled backgauge positioning enables accurate and repeatable cuts across multiple pieces. This improves production efficiency and reduces material waste from positioning errors.
Rigid Frame for Long-Term Stability
A well-designed frame distributes cutting forces evenly, supporting stable accuracy over time. This is particularly important for heavy plate work where machine deflection can affect cut quality.
Choose Guillotine Shear If
- Best for medium to thick plate cutting — If your production involves regular cutting of thicker plates where swing beam shears are at their limit, a guillotine shear provides the additional cutting force and flexibility you need.
- Recommended for adjustable cutting conditions — When you need to cut a variety of material types and thicknesses, the adjustable shear angle allows you to optimize cutting parameters for each job rather than working with a fixed geometry.
- Ideal for demanding production environments — For OEM lines, job shops and fabrication plants with heavy-duty plate work, the rigid structure and robust hydraulic system deliver the stability and reliability needed for daily production.
Shearing Machine Series Comparison
Compare features, capacity and investment to find the right shearing machine for your workshop.
Guillotine Shear
For medium to thick plate cutting with adjustable shear angle.
- Adjustable shear angle
- Higher cutting capacity
- CNC backgauge control
- For thick plate and demanding work
Swing Beam Shear
For fast, economical cutting of thin-to-medium sheet.
- Fixed shear angle
- Faster cutting cycles
- More economical investment
- For thin sheet and general fabrication
Control System
Choose from a range of NC and CNC controllers to match your operation requirements and budget.

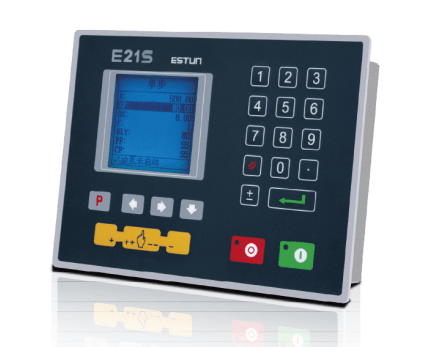

Sanyuan E21s
Entry-level NCEconomical NC shearing controller with LCD display for straightforward operation. Variable-frequency positioning, single-line programming and sheet thickness memory — practical entry-level solution for workshops moving beyond manual cutting.

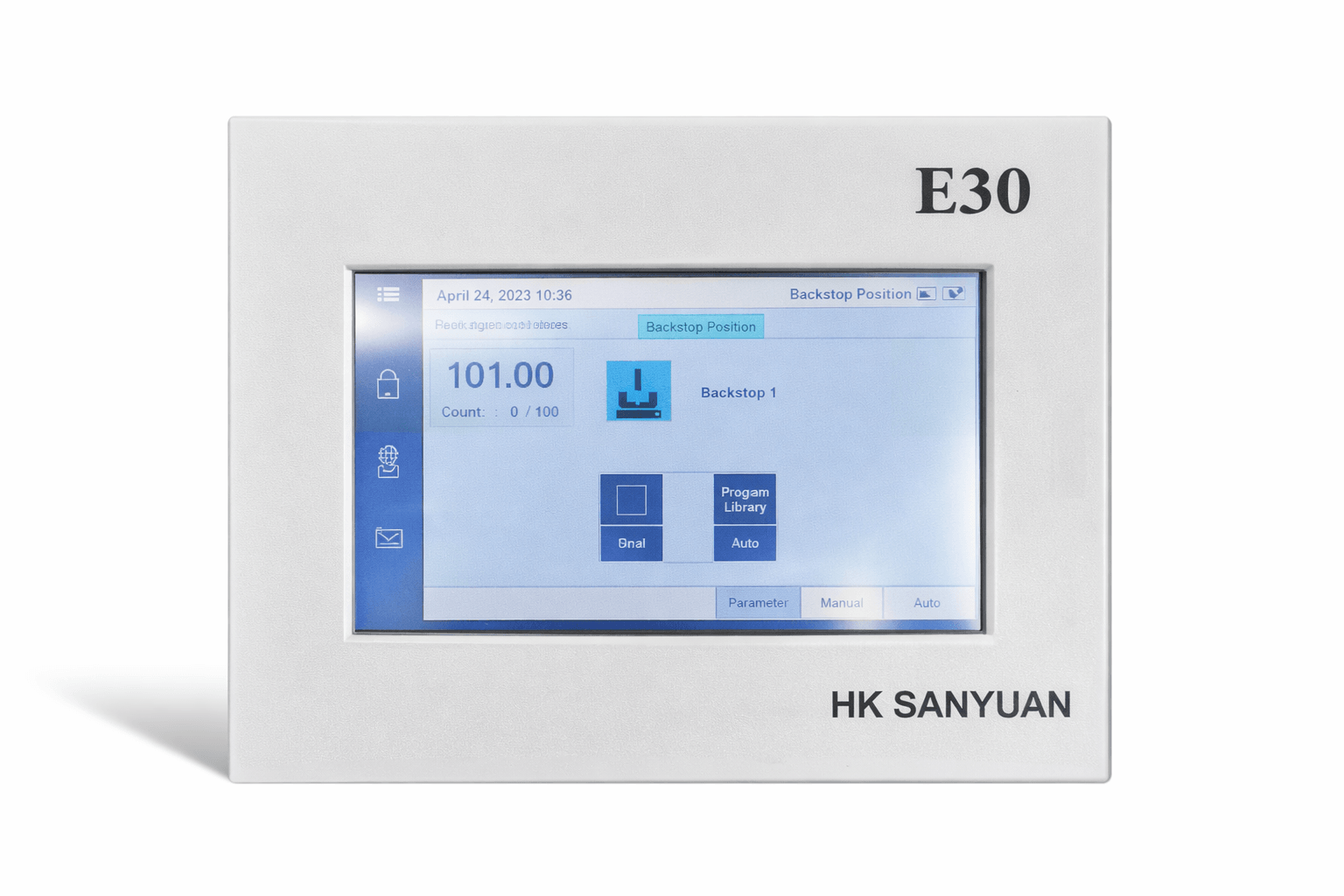

Sanyuan E30
7" touchscreen CNC7-inch colour touchscreen CNC controller with CANopen bus for stable, precise positioning. Supports angle programming, backgauge, stroke control, multi-program memory and power-off data retention — a versatile mid-tier option for daily production.

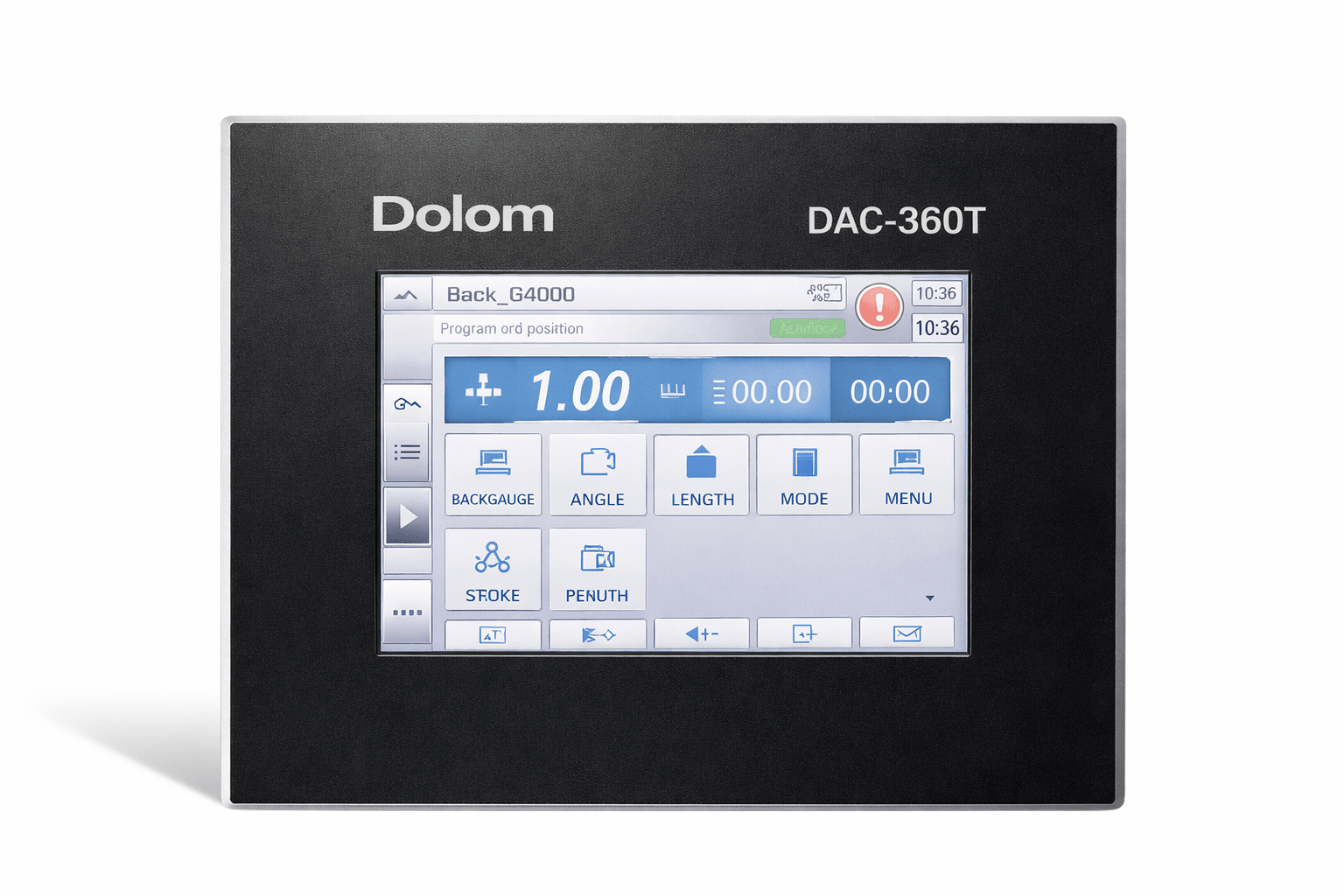

DELEM DAC-360T
Panel-mount CNCBright colour touchscreen with full shearing control: backgauge with retract, shear angle and blade gap, stroke limitation, manual axis movement, pressure control and sheet thickness detection — suited to programmed batch shearing and repeat quality.

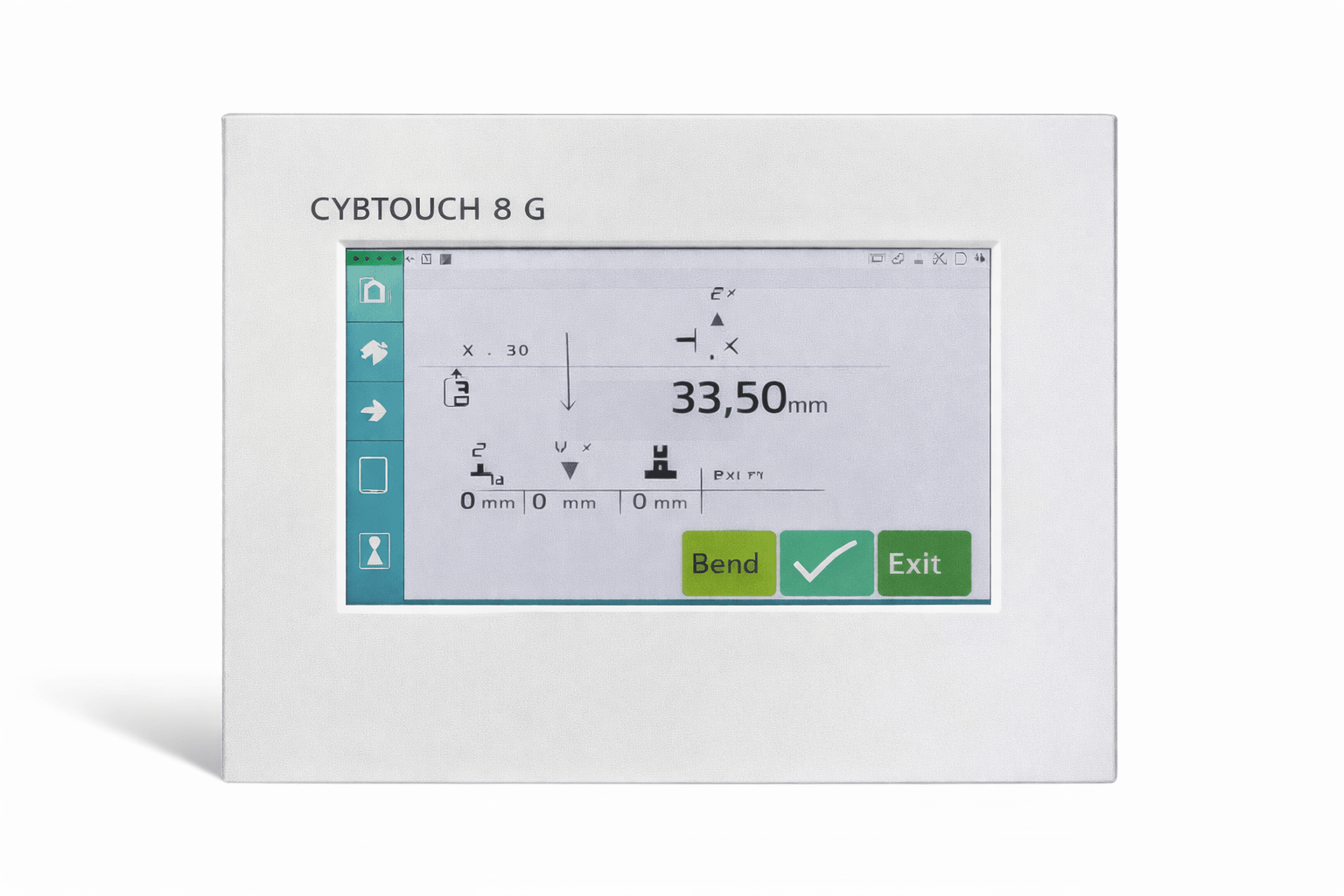

CYBTOUCH 8G
EasyCut & batchLarge high-contrast display with intuitive layout and EasyCut for quick single cuts, plus programming for complex batch work. Online help, multi-language support and PC-based data transfer — suitable for production environments requiring flexible batch shearing.
All controllers support multi-language operation. Contact us for controller recommendations based on your production needs.
Standard Configuration
Standard configurations include essential features for reliable daily operation. Optional upgrades available for enhanced performance.
Cutting System
- High-quality shear blades
- Adjustable shear angle mechanism
- Hydraulic hold-down clamp
- Front support table
Backgauge & Control
- NC backgauge control (standard)
- CNC backgauge control (optional)
- Backgauge travel: model dependent
- Position repeatability: ±0.02 mm
Hydraulic System
- Proven hydraulic valve brand
- High-capacity hydraulic cylinder
- Hydraulic power unit
- Oil tank with filtration
Frame & Structure
- Rigid welded frame structure
- Precision-machined guiding surfaces
- Stable worktable with ball transfer
- Heavy-duty base and foundation
Core Specifications at a Glance
Technical Specifications
Guillotine Shear Series - Main Models
| Model | Max Cutting Thicknessmm | Cutting Lengthmm | Strokes per Minute/min | Main Motor PowerkW | Weightkg |
|---|---|---|---|---|---|
| QC11K-6×2500 | 6 | 2500 | 18 | 7.5 | 5500 |
| QC11K-6×3200 | 6 | 3200 | 16 | 7.5 | 6500 |
| QC11K-8×3200 | 8 | 3200 | 14 | 11 | 7500 |
| QC11K-10×4000 | 10 | 4000 | 12 | 15 | 9500 |
| QC11K-12×4000 | 12 | 4000 | 10 | 18.5 | 11000 |
| QC11K-16×6000 | 16 | 6000 | 8 | 22 | 18000 |
| QC11K-20×6000 | 20 | 6000 | 6 | 30 | 22000 |
| QC11K-25×6000 | 25 | 6000 | 5 | 37 | 28000 |
Specifications are model dependent. Contact us for detailed specifications of specific models.
Trusted Worldwide
ZWCNC
Why Buyers Choose ZWCNC Guillotine Shear
ZWCNC has been manufacturing shearing machines for over 48 years, with 800+ units produced annually and exported to more than 80 countries worldwide.
shearingMachineChild.factoryTrust.provenManufacturing
shearingMachineChild.factoryTrust.provenManufacturingDesc
shearingMachineChild.factoryTrust.globalService
shearingMachineChild.factoryTrust.globalServiceDesc
shearingMachineChild.factoryTrust.longTermValue
shearingMachineChild.factoryTrust.longTermValueDesc
Guillotine Shear FAQ
- A guillotine shearing machine is used for straight-line cutting of sheet and plate material, especially when thicker plates or more demanding cutting conditions are involved. The upper beam moves vertically and the shear angle can be adjusted, which allows the machine to handle higher cutting forces and maintain cutting quality across different thicknesses.
- A swing beam shearing machine uses a pivoting upper beam with a fixed shear angle and is usually faster and more economical for thin-to-medium sheets. A guillotine shearing machine uses a vertically moving upper beam with adjustable shear angle, making it better suited for thicker plates, higher capacities and more flexible cutting conditions. The trade-off is higher investment and slightly slower cycles.
- Yes. Guillotine shearing machines are generally a better choice for thick plate cutting because their adjustable shear angle helps distribute cutting forces and reduce load. This allows more controlled cutting of heavier plates, with better edge quality and longer tool life when specified correctly for the material.
- Guillotine shearing machines typically have a more complex frame and drive structure, as well as adjustable shear angle mechanisms and higher capacity hydraulic systems. These design elements add cost but also provide stronger cutting capability and more flexibility for different materials and thicknesses. For buyers who regularly cut thicker plate, this additional investment is often justified.
- To choose a size, define your main material type, typical and maximum thickness and the maximum cutting length you require. Model designations such as 6×3200 or 12×6000 indicate thickness × cutting length. Select a model whose capacity comfortably covers your maximum thickness and sheet length with a safety margin, particularly if you work with stainless or high-strength steel.
What is a guillotine shearing machine used for?
What is the difference between a guillotine and a swing beam shearing machine?
Is a guillotine shearing machine better for thick plate cutting?
Why does a guillotine shearing machine cost more?
How do I choose the right guillotine shearing machine size?
Get a Guillotine Shear Recommendation
Share your material type, thickness range, working length, production volume and required cutting flexibility. We can help you confirm whether a guillotine shearing machine is suitable and recommend specific models and configurations for your fabrication line.
